[GB] VTX Angle65 Keyboard Kit

This is a pre-order item, please do not add other in stock items to your cart when ordering or your order will be cancelled.

Group Buy Period: 15th July - 15th August 2025
Estimated Fulfilment: Q1 2026

Angle65 is the second design following the Angle80. The moonstone badge, parabolic curves and angular styling are retained design elements in the series. This time each unit is physically serialized with a badge unique to each unit.

Angle65 uses a leaf spring silicone gasket mount. The asymmetric design of the leaf spring arms allows for an even bounce to be felt across the entire keyboard while typing with special attention to the spacebar and alphas. The gaskets fully isolate the plate from the case with the brass midpiece designed for both heft and to positively alter the sound.

Case Specifications:
Material: 6063 Aluminium, Brass, Stainless Steel
Layout: 65%
Typing Angle: 8 Degrees
EKH: 22.46mm
Weight: 1.96kg
Mounting: Leaf Spring Molded Gasket

PCB Specifications:
Material: Black FR4
Thickness: 1.6mm
Connectivity: JST to Unified Daughterboard
Customizability: VIA
Type: Solderable and Hotswap
Designer: Vertex Engine

Vendors:
North America: Bowlkeyboards
Europe: Deltakeyco
China: Vertex
Australia: KeebzNCables
United Kingdom: Prototypist
South East Asia: Pantheonkeys (You are here)

What's Included:
6063 Aluminium Top Case
6063 Aluminium Bottom Case

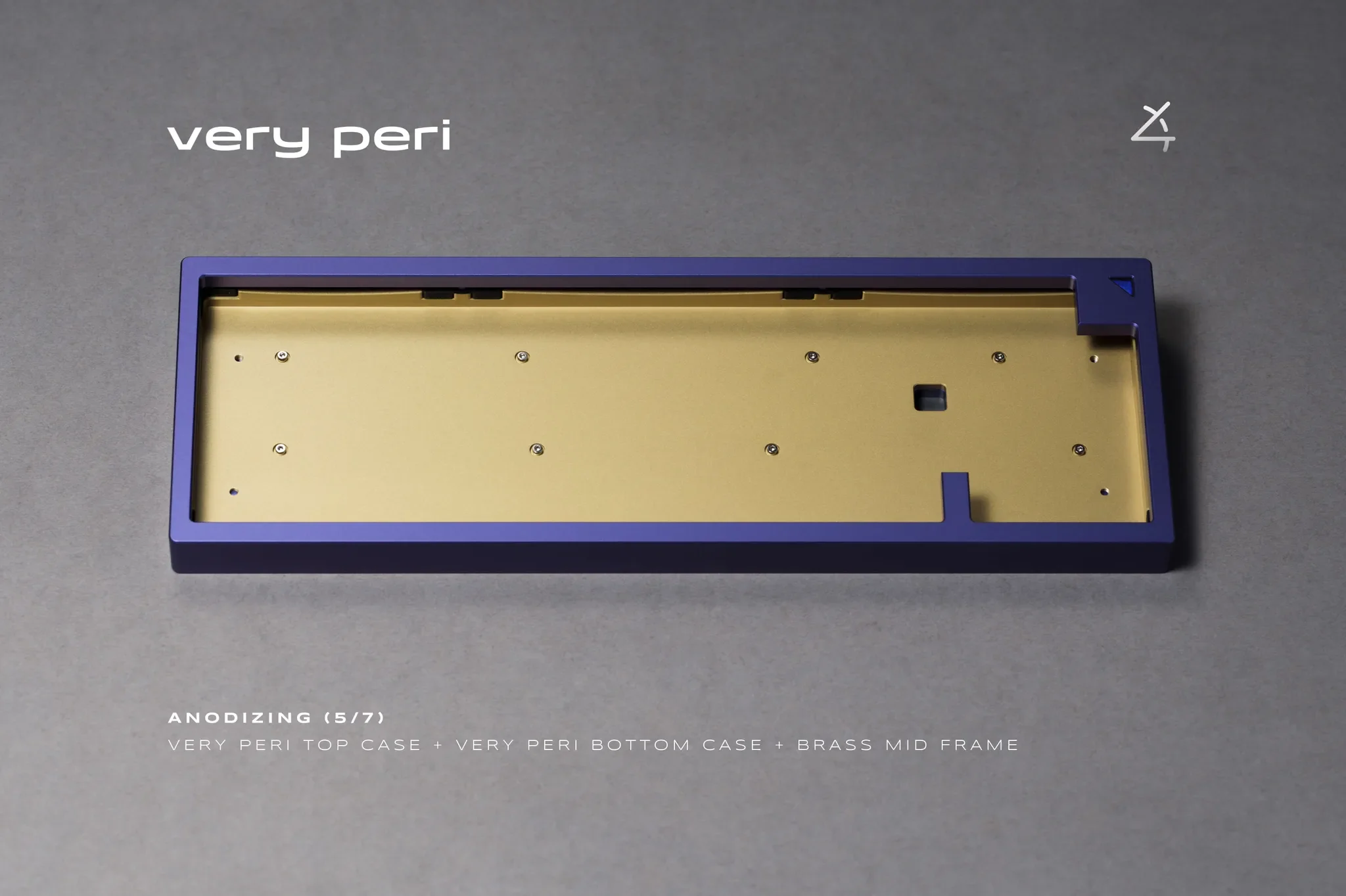

Brass Mid Piece
Stainless Steel Weight and Badge
Corner Blocker Badge
Gaskets, Screws, Accessories necessary for assembly

PCB Compatibility (Hotswap):

PCB Compatibility (Soldered):


Disclaimer:

  • This product includes only the items listed above. Keycaps and switches shown are for demonstration purposes and are not included.
  • Group buy lead times are estimates, and delivery may take longer than expected.
  • Images are for illustrative purposes. While we strive for accurate color representation, slight variations may occur due to lighting, digital photography, and monitor settings.
  • Orders can be canceled during the group buy period, subject to a 4% cancellation fee for Singapore orders and 4.5% for international orders. Once the group buy has ended, cancellations and refunds will no longer be accepted.
  • Discount codes and vouchers do not apply to pre-order or group buy products.
  • If free shipping is selected for a pre-order/group buy item, Pantheonkeys reserves the right to adjust shipping prices at any time if necessary.

By placing an order, you acknowledge and agree to these terms.
